New road regulator
Power 12Kva3x4Kva)-18Kva(3x6Kva)-24Kva(3x8Kva)-35Kva(3x11,5Kva) complete with:
- Components for the control through crepuscolar: telebreaker, rearmable differential
- Genius Power 2 regulators (according to the power)
- CTRL128 Control (see detailed data sheet) with software activated for remote control
- Three-phase T.A. Module for the survey of all electric parameters
- Three-phase Bypass that can also be forced manually
- GPRS Modem for the remote control of the alarms and the saved power
- No. 3 magnetothermics to protect the three output lines
Single-phase switchboard panel Genius
Single-phase regulator in standard IP 44 panel for internal and external installations
The panel consists of a GENIUS POWER regulator and a GENIUS CTRL-64 control besides the standard protection devices. The system is provided with manual or automatic by-pass.
Available series
Single-phase switchboard panel Genius: 4KA-N
Single-phase switchboard panel Genius: 6KA-N
Single-phase switchboard panel Genius: 8KA-N
Single-phase switchboard panel Genius: 11,5KA-N
Upon request options
According to your requirements it is possible to provide the standard switchboard panel with the following accessories:
GENIUS SENSOR device for the luminosity sense;
GENIUS BY PASS automatism for electromechanical by-pass
MODEM GPRS device for telephone control of defective regulator
Three-phase switchboard panel Genius
Genius Three-phase panel in metal Protection IP21.
Power 12Kva3x4Kva)-18Kva(3x6Kva)-24Kva(3x8Kva)-35Kva(3x11,5Kva) complete with:
- Components for the control through crepuscolar: telebreaker, rearmable differential
- Genius Power 2 regulators (according to the power)
- CTRL128 Control (see detailed data sheet) with software activated for remote control
- Three-phase T.A. Module for the survey of all electric parameters
- Three-phase Bypass that can also be forced manually
- GPRS Modem for the remote control of the alarms and the saved power
- No. 3 magnetothermics to protect the three output lines
The three-phase standard panels are equipped, upon request, with manual and automatic by-pass.

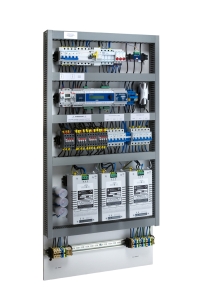

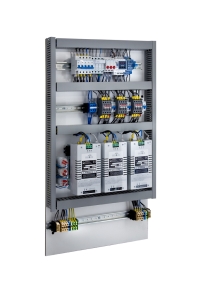

Regulators on plate
This line of regulators on plate has been created in order to allow the electric installers to house the regulator inside existing panels or light panels of first plant.
They have the same power of the single-phase and three-phase series and they are provided with electromechanical parts both for the manual by-pass version and for the automatic by-pass one.
Upon request it is possible to create electromechanical variations from our standard, such as: tension dischargers, rearmable differentials, triplication of the outputs etc.
Power from 12 - 18 - 24 - 35 KVA provided with Enel control with:
- general magnetothermic switch
- rearmable differential
- general telebreaker
- astronomic clock
- automatic by-pass
- genius control CTRL128
- T.A. module for the measurement of all the electric parameters included the saved power in KW of the installation
- GPRS module for the remote survey of the installation parameters
Power from 12 - 18 - 24 - 35 KVA without Enel control and with :
- general magnetothermic switch
- automatic by-pass
Available models
12 Kva, 18Kva, 24 Kva e 35 Kva
- general magnetothermic switch
- automatic by-pass
- module GPRS for alarm of broken regulator
Booster panel
Three-phase regulator in standard IP21/IP44/IP55 panel both for internal and external installations.
The panel consists of three power regulators Boosters and electronic control besides the protection devices, as well as manual and automatic by-pass with zero time. This Series is available both for road and internal installations:
GENIUS THREE-PHASE PANEL POWER 42KVA
GENIUS THREE-PHASE PANEL POWER 51KVA
GENIUS THREE-PHASE PANEL POWER 62KVA
GENIUS THREE-PHASE PANEL POWER 76KVA
GENIUS THREE-PHASE PANEL POWER 103KVA
GENIUS THREE-PHASE PANEL POWER 117KVA
For cabins or technical rooms or for road applications.
